1.PrecisionCore Technology

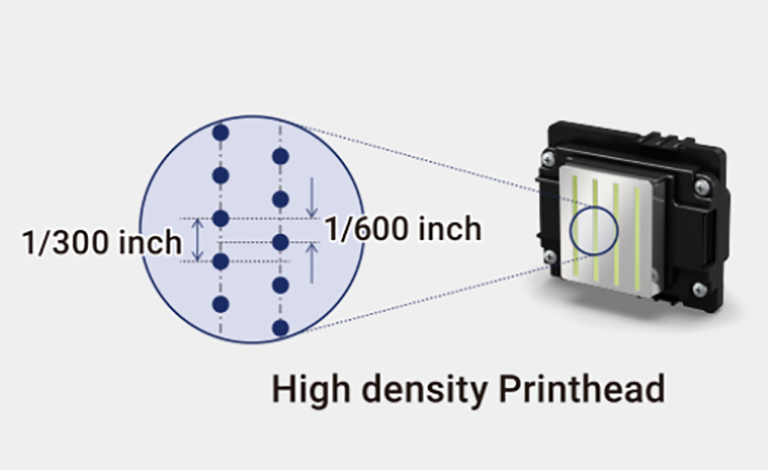

①. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
②. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epson's unique Variable Sized Droplet Technology
(VSDT) delivers smooth gradation by freely control to
eject the droplet volume.
3.High resolution
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200 has also been added to the lineup in order to meet the various customer needs.
4. High durability
PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.
Specifications
| Product name | I3200-E1 | |
| Ink type | Eco Solvent | |
| Type | PrecisionCore MicroTFP printhead | |

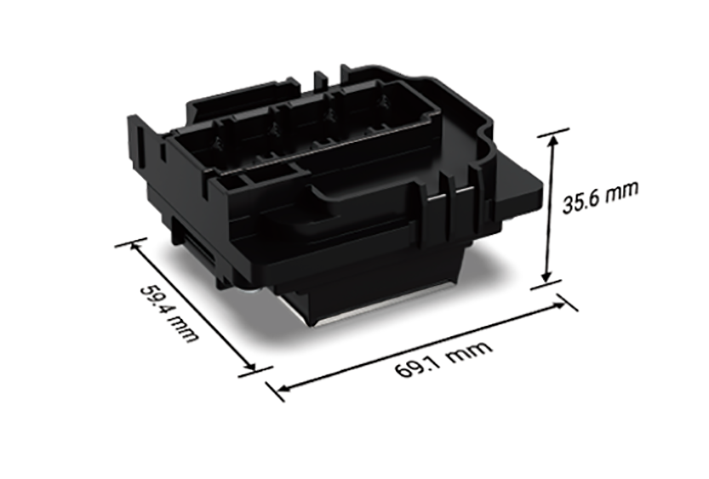

| Width x Depth x Height | 69.1 x 59.4 x 35.6 mm | |
| Weight | 82 g | |
| Number of nozzle | 3200 | |
| Nozzle pitch/nozzle row | 1/300 inch | |
| Nozzle Resolution | 300 npi /row 600 npi/2 rows | |
| Max. number of colour inks | 4 colours | |
| Effective print width | 33.8 mm (1.33 inches) | |
|
Droplet ejection performance |
Binary | 6 pl at 43.2 kHz |
| 3 levels grey scale | 6.3, 12.3 pl at 21.6 kHz | |
| 4 levels grey scale | 3.8, 5.5, 8.7 pl at 21.6 kHz | |
| Viscosity range | 3-4 mPa·s | |
| Positioning Mechanism | Reference hole | |
