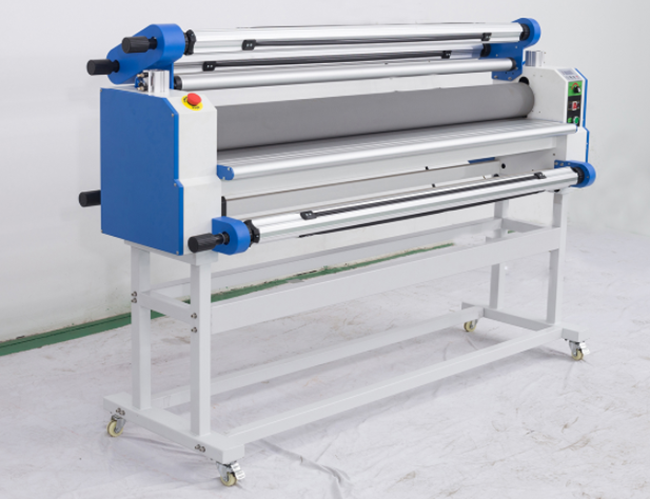

1680A 1600mm Full-auto Pneumatic Hot/Cold Laminator Machine with Cutting Function
Feature:
- Infrared ray control temperature more precise, do not hurt silicone roller.
- Unilateral linkage,up and down easily Two laminating ways:auto/foot control.
- Stepless speed regulation.
- With reversing function.
- Uncovering backing paper and finishing products automatically.
- Only need one person to operate,save cost. Heating to 60C to avoid bubble thoroughly.
- High efficiency and high yield of lamination, whole film of 50m don't bevel.
- Film and paper tightness-degree system makes the cold laminationhave good tension, reduces the risk of laminating fold.
Specification:
| Model Number | 1680A |
| Nominal Voltage | 110V/220V |
| Power | 60W |
| Heating Power | 1500W |
| Frequency Respons | 50HZ-60HZ |
| Operating Temperature | 0°C-60°C |
| Scope of Suitable Film Thickness | 10-250um |
| Warm-up Time | 0-10Min |
| Laminating Width | ≤1520mm |
| Laminating speed | 0-10m/Min |
| Laminating Thickness | 28mm |
| Speed Gear Controling | Variable |
| Maximum roll film OD | 200mm |
| The diameter specification of Roll film | 3 inches |
| The raise height of roller | 30mm |

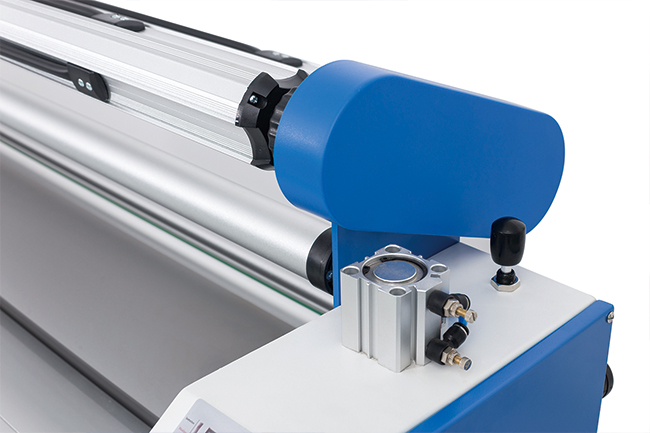

| Method of pressure adjustment | Pneumatic |
| Automatically uncovering film androlling body paper equipment | Motor |
| Foot-propelled switch | Yes |
| Diameter of roller | 130mm |
| Weight | 210kg |
| Product Size | 1980x570x1240(mm) |
| Packing Size | 2070x610x680(mm) |
Details:
Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
